Package Included

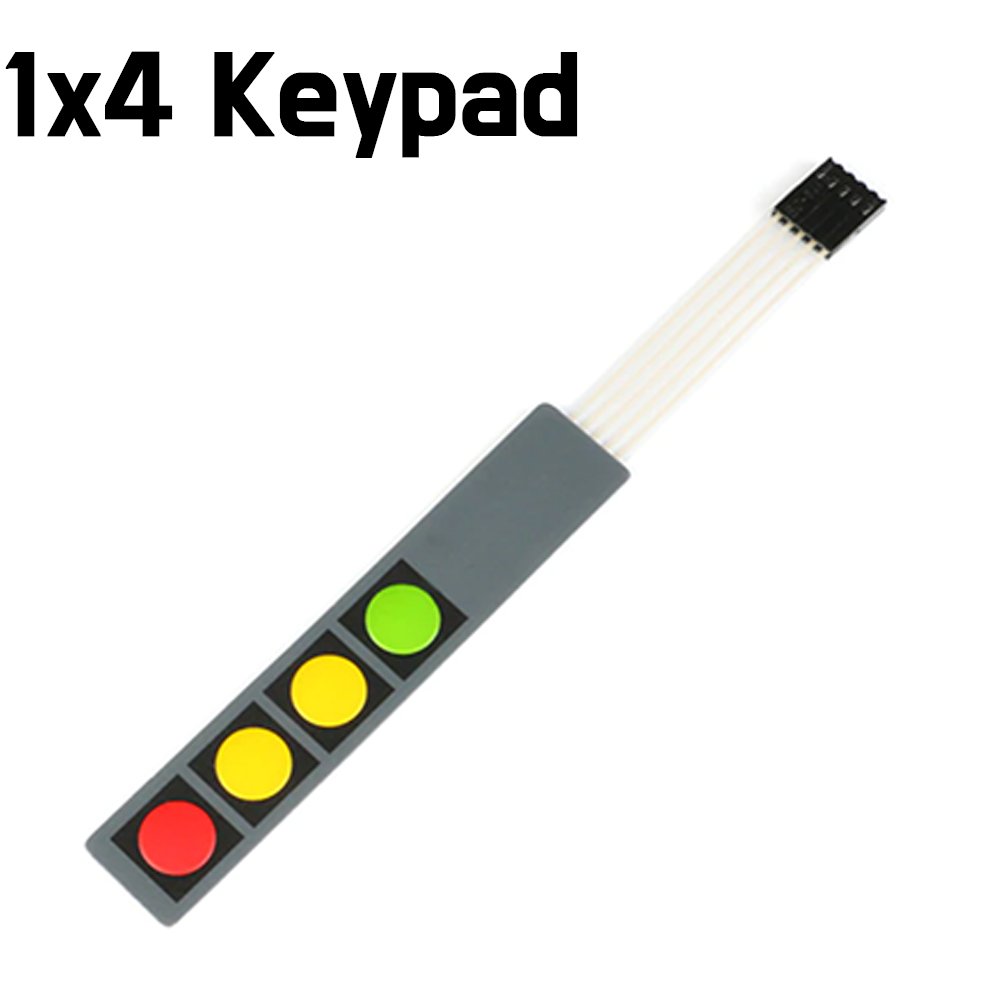

- 1 x 4 Key 1 x 4 Keypad for Arduino - Flat Membrane Matrix Switch

Description:

1.The electronic characteristics:
Circuit Rating: 24V (DC), 50mA
Contact resistance: 10Ω ~ 500Ω
(Varies according to the lead lengths and different from those of the material used)
Insulation resistance: 100MΩ 100V
Dielectric Strength: 250VRms (50 ~ 60Hz 1min)
Electric shock jitter: <5ms
Life span: tactile type: ≥ one million times

2.The mechanical properties
Operating pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz)
Switch travel: touch-type: 0.6 ~ 1.5mm

3.The environment parameters
Storage temperature: -40 to +80
Temperature: from 40,90% to 95%, 240 hours
Vibration: 20G, max. (10 ~~ 200Hz, the Mil-SLD-202 M204.Condition B)
