Package Included

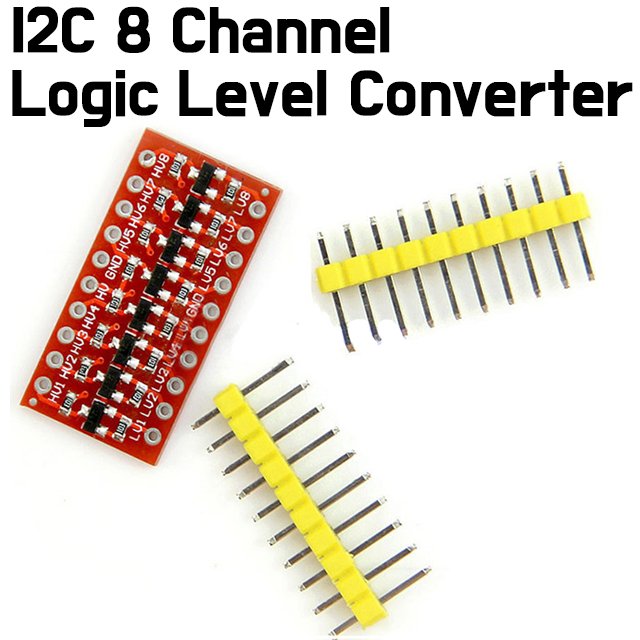

- 1pcs x I2C IIC 8 Channel Logic Level Converter Bi-Directional Module Step Up 3.3V To 5V

Description:
- Bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side

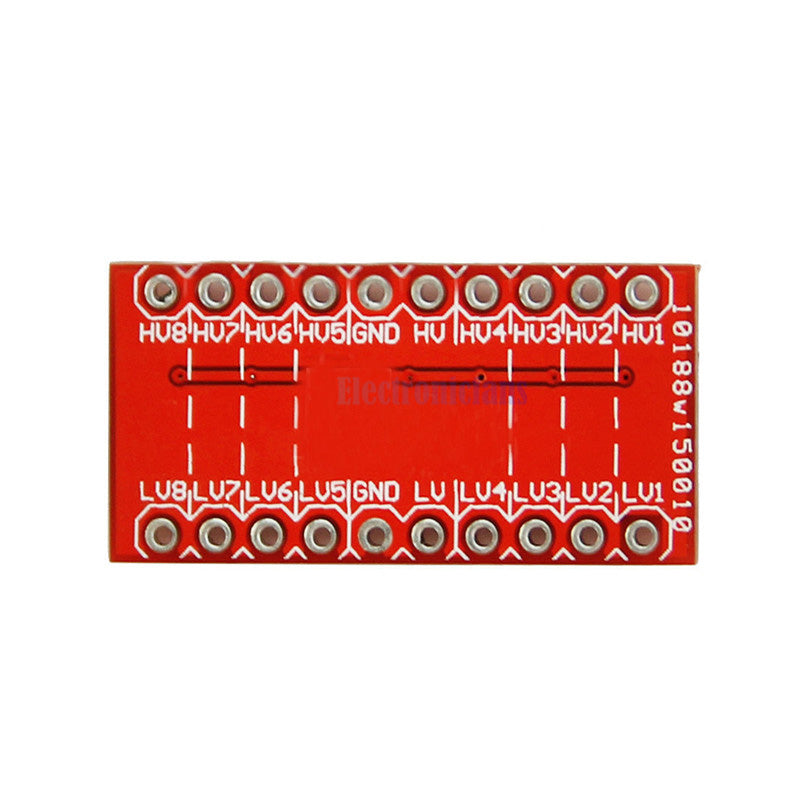

- High voltage (5V for example) to the 'HV' pin, low voltage (3.3V for example) to 'LV', and ground from the system to the 'GND' pin
Compatible with 5-3V system

VIN connected 5V system power supply
5A connected 5V system
5B connected 5V system
GND connected 5V system GND
3V3 connected 3V system power supply
3A connected 3V system
3B connected 3V system
GND connected 3V system GND

Reference
- http://bit.ly/Bi-Directional-Logic-Level-Converter

#SP0002 # TTL
