Package Included

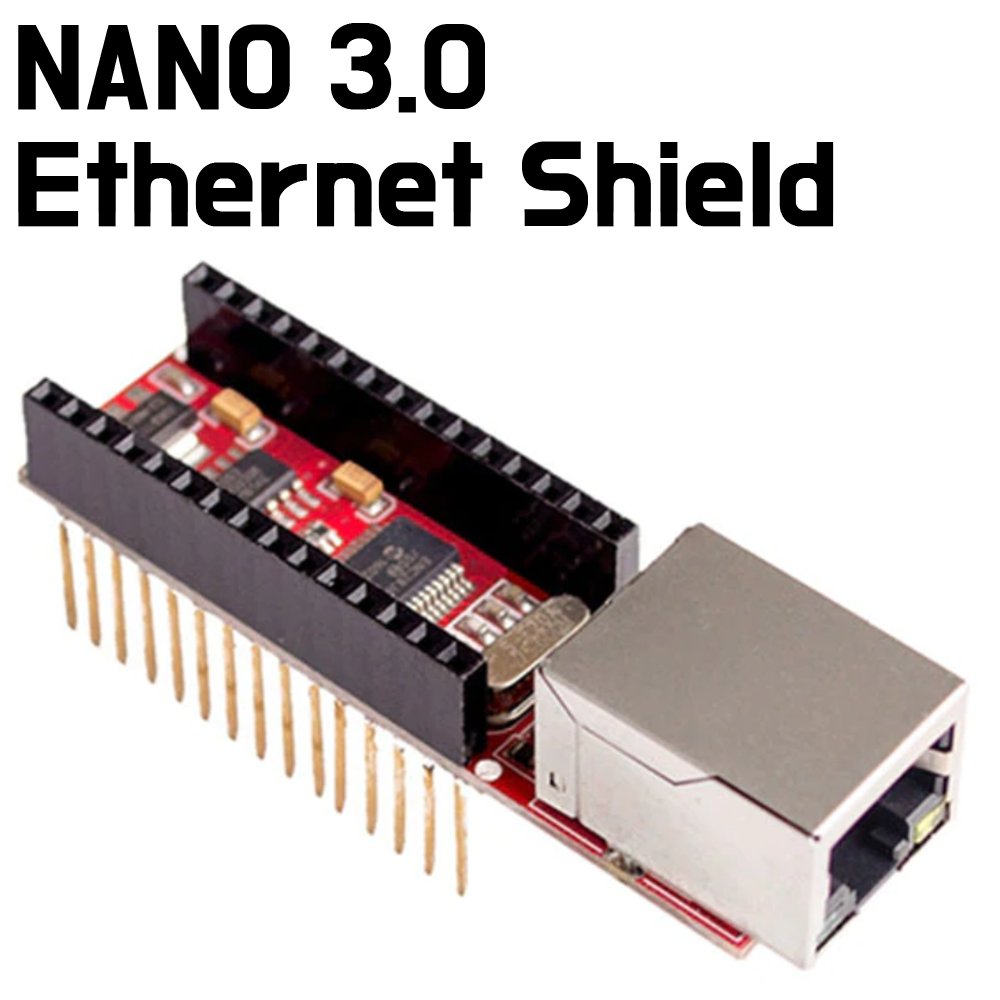

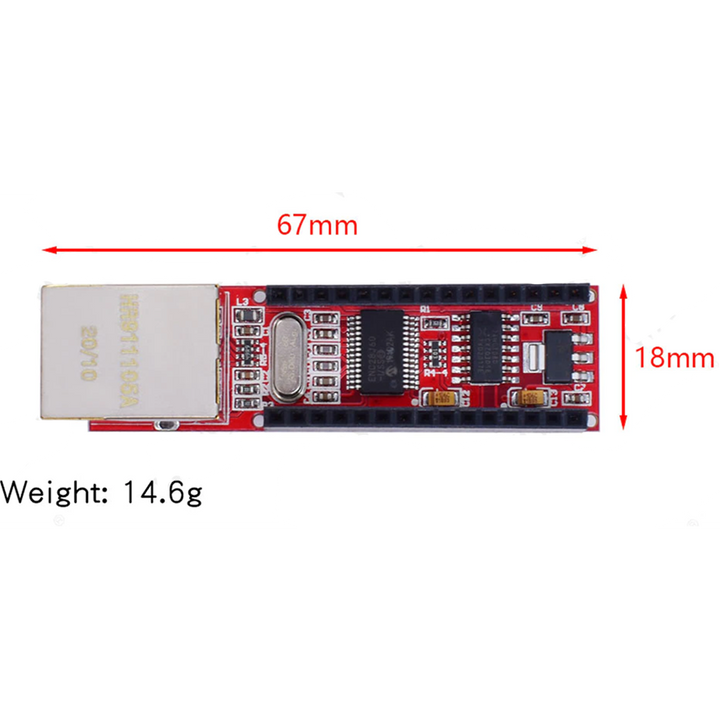

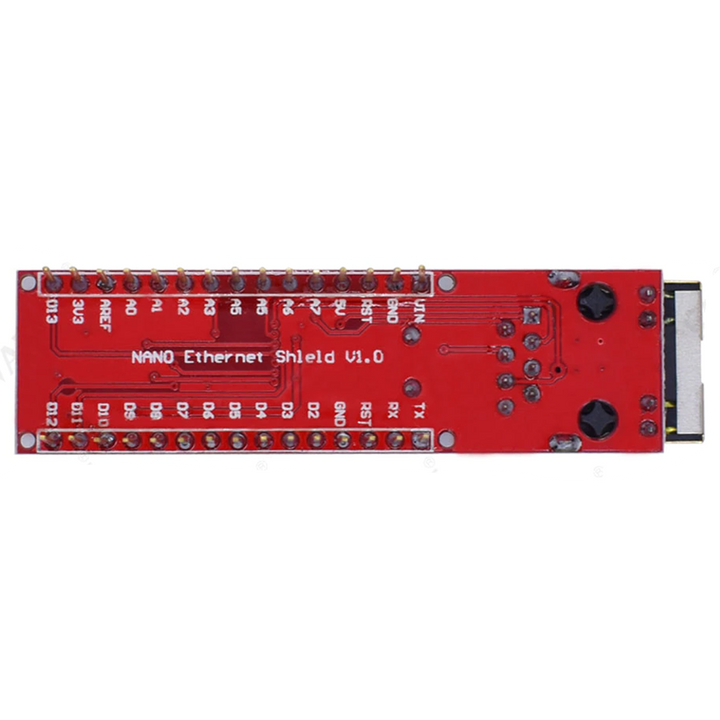

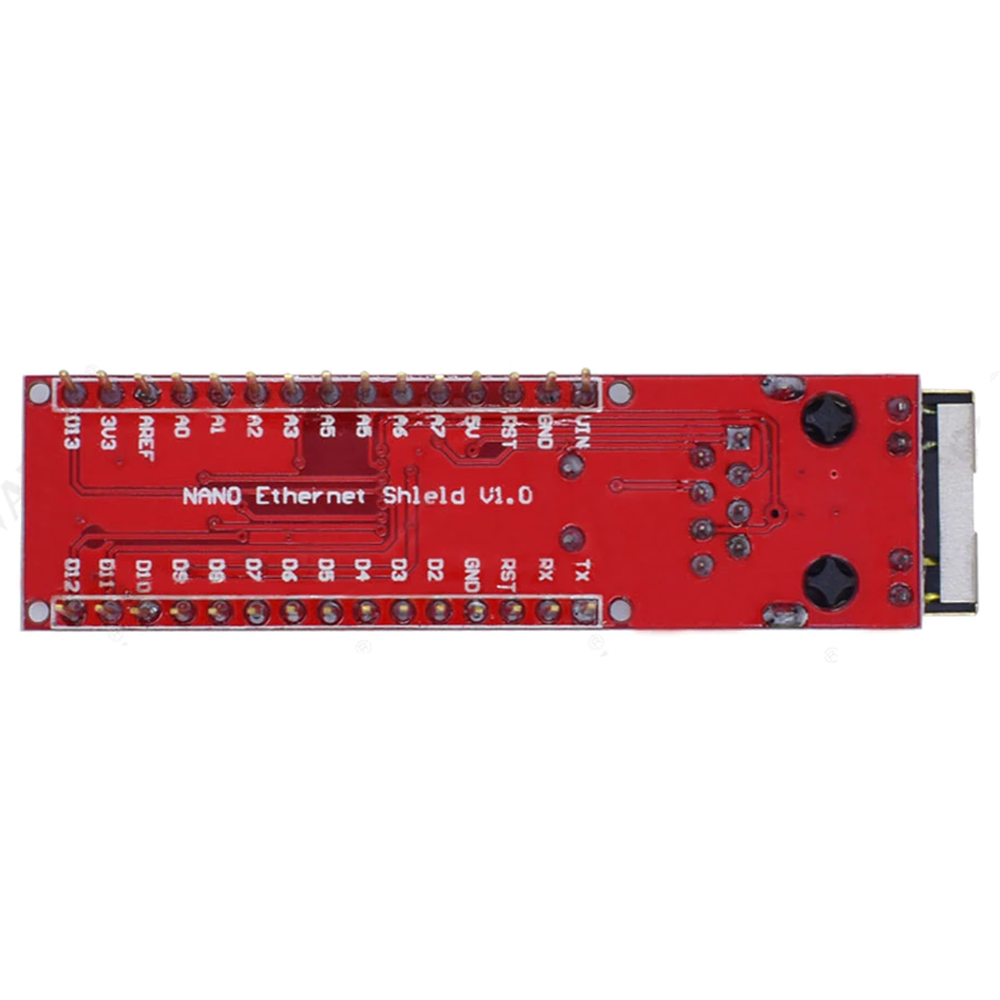

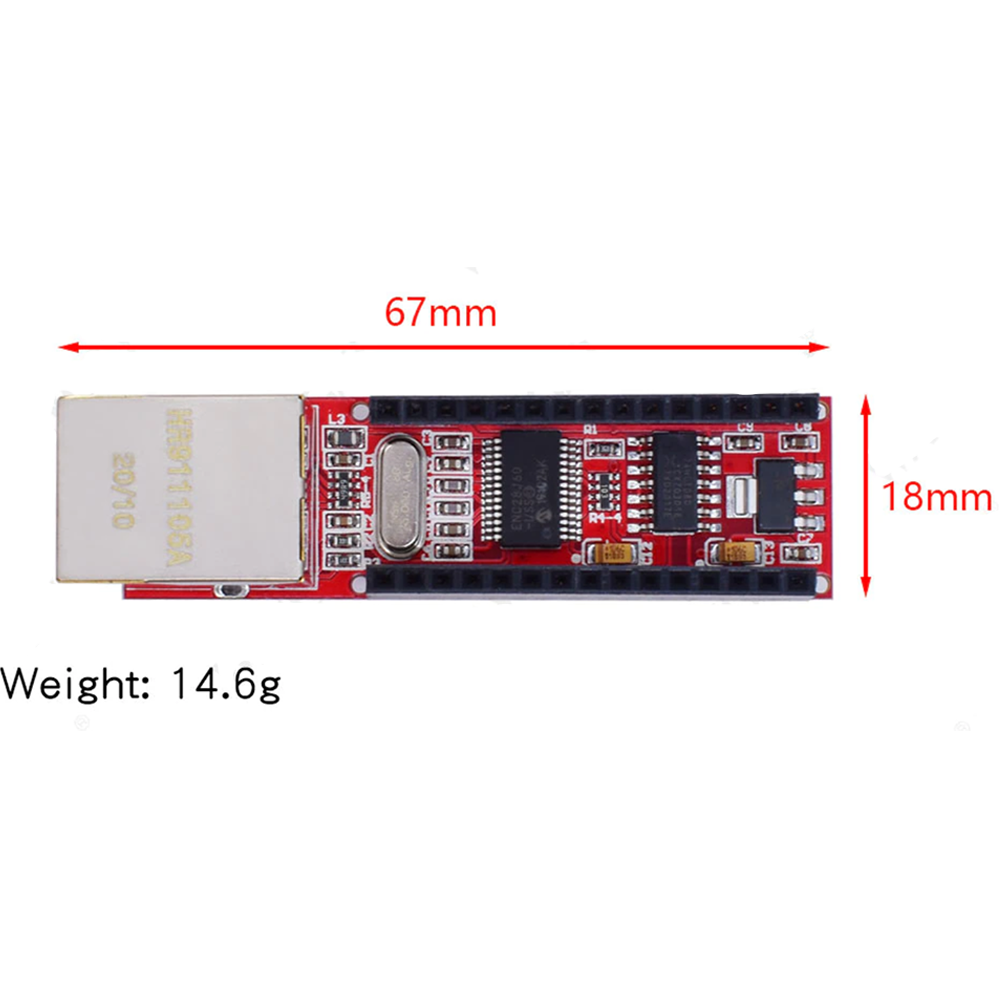

- 1pcs x Ethernet Shield for Arduino NANO 3.0- ENC28J60

Description:

- Controller: ENC28J60
- This Nano Ethernet Shield allows you to connect the Nano to a network.
- It is assembled with long stackable pin headers, and don’t need to solder the headers separately.
- The Nano Ethernet Shield is based on the ENC28J60 Ethernet chip which provide a network (IP) stack capable of both TCP and UDP.
- Use the Ethernet library to write sketches which connect to the internet using the add-on module.
- ENC28J60 is a 10BASE-T stand alone Ethernet unit with on board MAC & PHY, 8 Kbytes of Buffer RAM and an SPI serial interface for 3.3V and 5V logics.
- With a small size the Nano Ethernet Shield minimizes complexity, board space and cost.
- Target applications include VoIP, Industrial Automation, Building Automation, Home Control, Security and Instrumentation.
- Shield use power 5V from Nano board and convert to 3.3V (on shield have 3.3V LDO).

Tutorial
https://bit.ly/Nano-ethernet-shield-tutorial
