Package Included

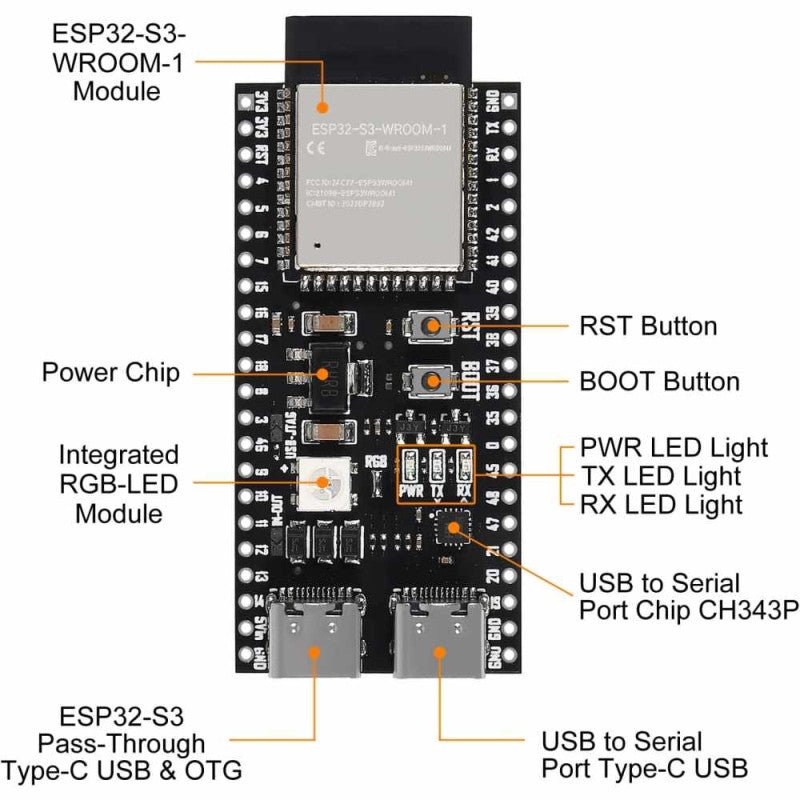

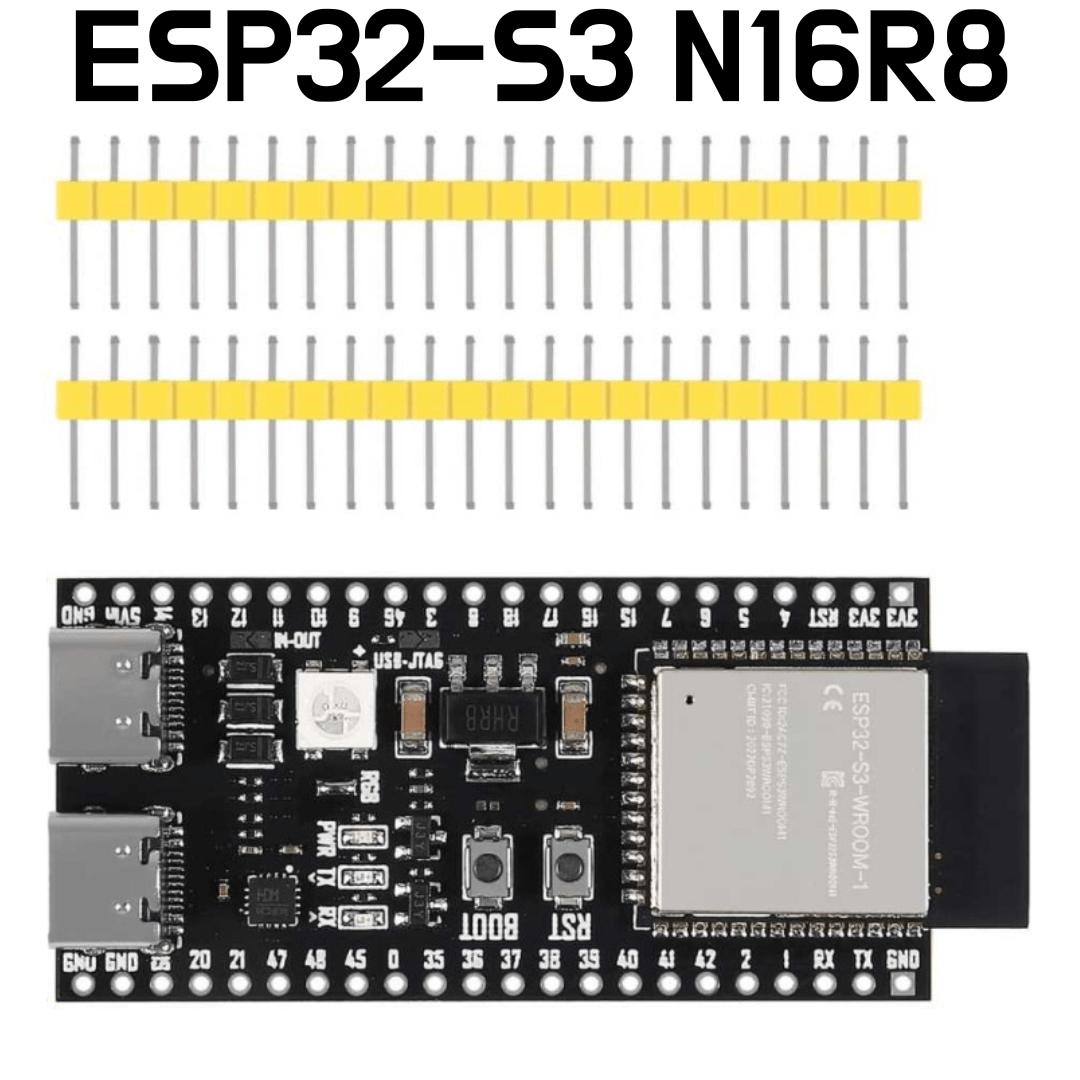

• 1 x ESP32-S3 N16R8 Development Board

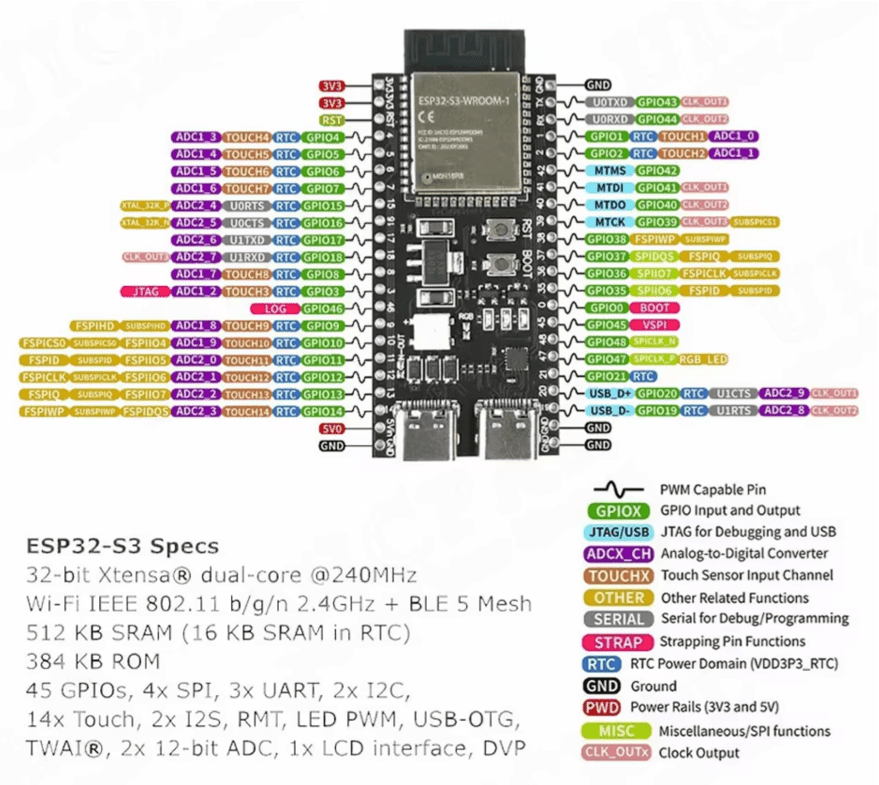

ESP32-S3-N16R8 Specifications:

• Core:
      * Xtensa® 32-bit LX7 dual-core processor
      * Clock speed: up to 240 MHz

• Memory:
      * 16 MB embedded Flash
      * 8 MB embedded PSRAM

• Wireless:
      * Wi-Fi: 802.11 b/g/n (2.4 GHz)
      * Bluetooth 5 (LE)

• AI Features:
      * Vector instructions for neural network processing
      * Enhanced digital signal processing

• Interfaces:
      * 45 programmable GPIOs
      * SPI, I2S, UART, I2C, CAN, IR
      * USB OTG
      * LCD interface
      * Camera interface

• Other Features:
      * Ultra-low-power coprocessor
      * Operating voltage: 3.0V to 3.6V
      * Temperature range: -40°C to +85°C (industrial grade)

Reference

• https://docs.espressif.com/projects/esp-idf/en/stable/esp32s3/get-started/index.html?utm_source=chatgpt.com
