Package Included :

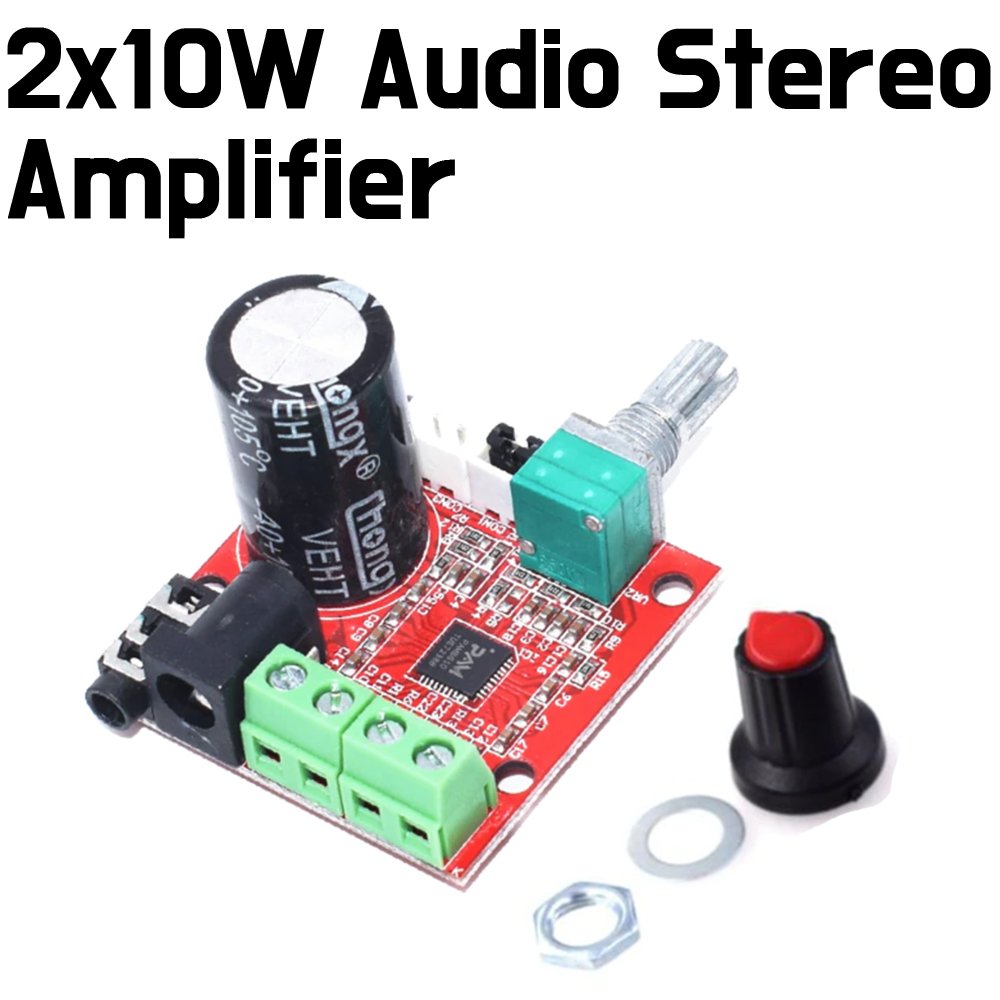

- 1 x Mini Hi-Fi Audio Stereo Amplifier Board 2X10W Dual Channel D Class

Description

- Operating voltage: DC 7.5-15V
- Recommended power supply voltage: 12V
- Chip: PAM8610 Class D amplifier chip
- Quiescent current: 20mA
- Efficiency: 90%
- Rated output power: 10W +10W (8Ω)
- Frequency response: 20Hz to 50KHz

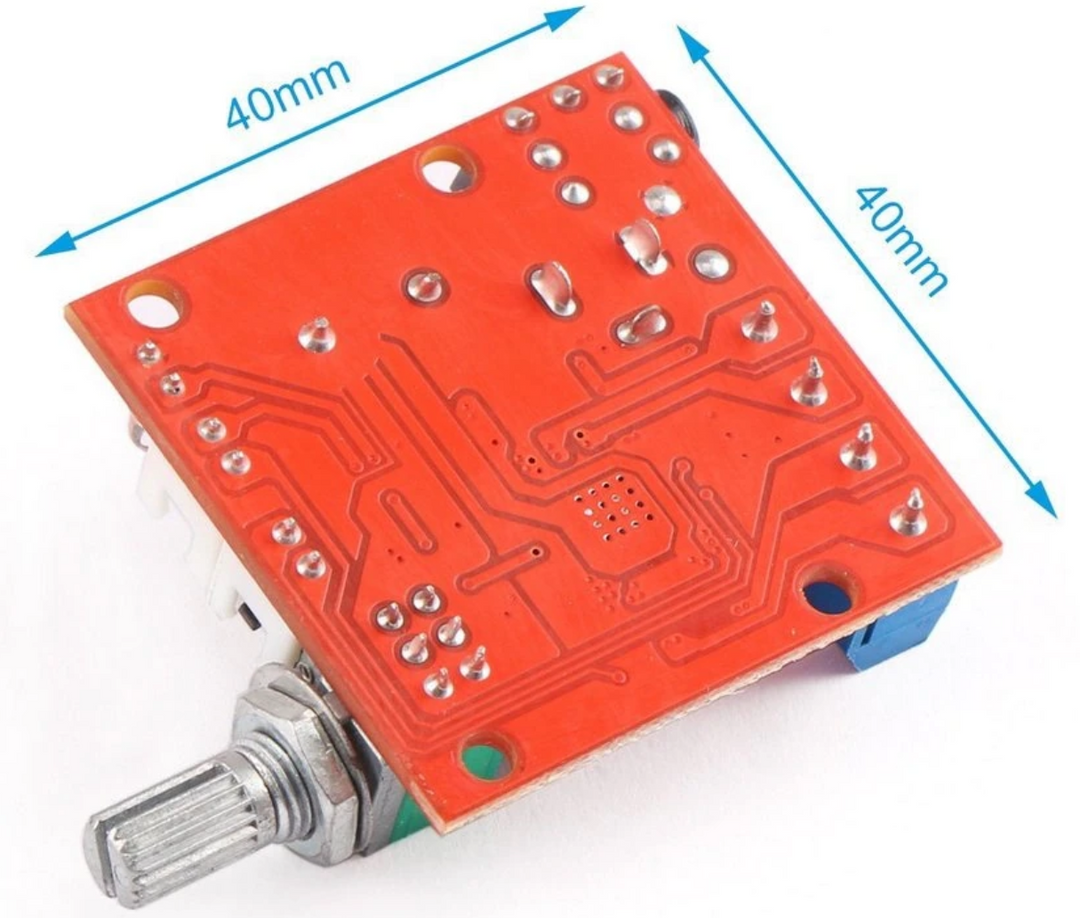

- PCB board size: (40 * 40) mm

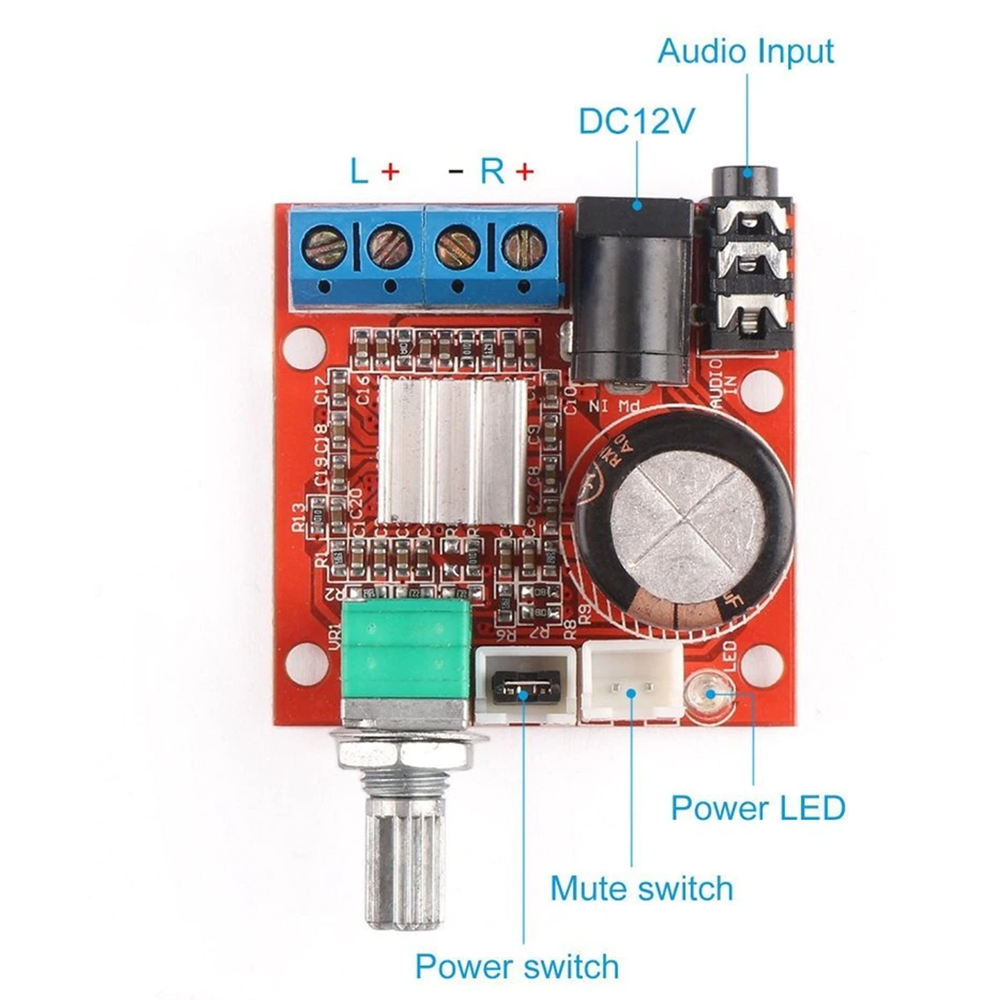

- 3.5MM stereo audio input interface
- Power Interface: 5.5 socket
- 2200UF capacitor - ensure pure sound quality

Please note that the knob would be sent with a random colour.(Not selectable)

Video Reference
