Bluetooth Decoder Board - U Disk, TF Card support

Bluetooth Decoder Board - U Disk, TF Card support
Bluetooth Decoder Board - U Disk, TF Card support
Bluetooth Decoder Board - U Disk, TF Card support

Bluetooth Decoder Board - U Disk, TF Card support

Default
Regular price $9.99
/
  • Free shipping on all orders over $100
  • Secure payments
  • Low stock - 5 items left
  • Inventory on the way
Tax included. Shipping calculated at checkout.

Package Included :
- 1pcs x Bluetooth decoder board - U Disk, TF Card support, MP3, WAV, APE, FLAC decoding



Description
- Power Supply 3.7-5V
- Colour:red

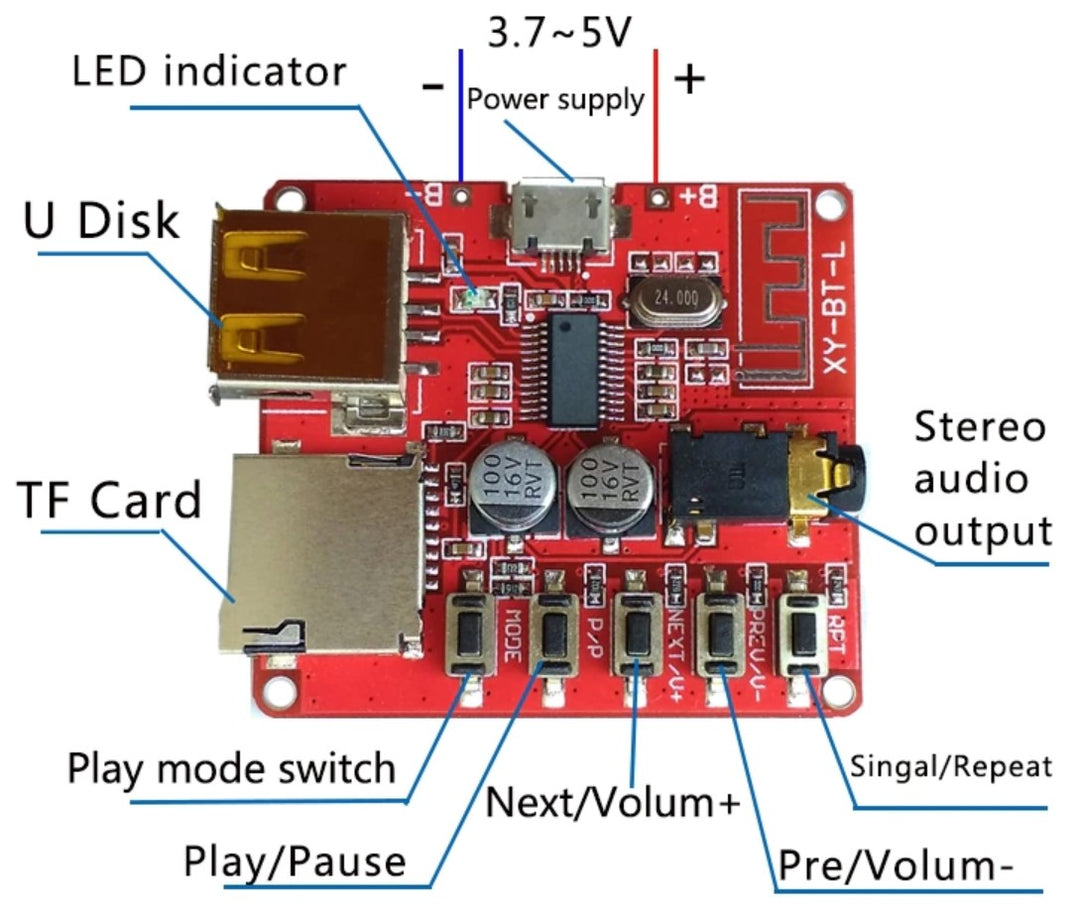

Interface:
- Universal Micro-USB 5V power supply
- 3.7-5V supply pad
- U disk : MP3 / WAV / APE / FLAC file, support FAT16 / 32 file format
- TF card: MP3 / WAV / APE / FLAC file, support FAT16 / 32 file format
- LED indication: Bluetooth mode blue light long, music mode blue light flashing
- 3.5mm stereo output

Key function definition
- RP: "Short press", single / loop switch
- PREV / V-: "Short press" on a song, "long press" volume down
- NEXT / V +: "Short press" the next song, "long press" volume increase
- P / P: "Short press" to play and pause the switch
- MODE: "Short press", TF card, U disk, Bluetooth mode switch

Nore:
- It is recommened to use 5V power supply because the early U disk doesn't support 3.7V.
