Description:

Upgrade your CNC machine with the DRV8825 Driver Kit for CNC with Arduino Uno and Shield Expansion Board. Achieve smooth and accurate motor movement for your CNC operations with this high-performance kit. With easy integration and versatile compatibility with popular software like GRBL and Mach3, this kit is the perfect solution for efficient CNC motor control.

Powerful Motor Control

High Performance DRV8825 Driver Module

The DRV8825 Driver Kit with Arduino Uno and Shield Expansion Board provides powerful motor control for your CNC machine. The DRV8825 driver module is known for its high performance, delivering up to 2.5A per coil and allowing for precise control over motor movement. With its advanced current control technology and microstepping modes, this kit ensures that your CNC machine operates with maximum efficiency and accuracy.

Easy Integration and Versatile Compatibility

Simple Setup with Shield Expansion Board

The DRV8825 Driver Kit with Arduino Uno and Shield Expansion Board is designed to be easy to set up and integrate with a range of CNC machines. The Shield Expansion Board allows for quick and simple connection between the DRV8825 module and the Arduino Uno, ensuring seamless integration with your CNC machine. The kit is compatible with a wide range of CNC software, including GRBL and Mach3, allowing you to choose the software that best suits your needs. Whether you're retrofitting an existing machine or building a new one, this kit is versatile enough to fit into any CNC project.

Smooth Motor Movement and Accurate Positioning

Stepper Motor Control for Precise CNC Operations

The DRV8825 Driver Kit with Arduino Uno and Shield Expansion Board provides smooth motor movement and accurate positioning for your CNC operations. The advanced current control technology and microstepping modes allow for precise control over motor movement, ensuring accurate positioning and smooth motion. Whether you're cutting intricate designs or drilling precise holes, this kit ensures that your CNC machine operates with maximum efficiency and accuracy.

Features:

- Latest CNC Shield Version 3.0 for Arduino.
-GRBL 0.9 compatible. (Open source firmware that runs on a UNO for Arduino that turns G-code commands into stepper signals)
- PWM Spindle and direction pins 4-Axis support (X, Y, Z, A-Can duplicate X, Y, Z or do a full 4th axis with custom firmware using pins D12 and D13)
- 2 x End stops for each axis (6 in total) Coolant enable
- Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
- Runs on 12-36V DC. (At the moment only the DRV8825 drivers can handle up to 36V so please consider the - operation voltage when powering the board.)
- Size of Shield: 68mm(L) * 53mm(W)
- Size of A4988: 20mm(L) * 15mm(W)
- Size of Uno: 68.6mm(L) * 53.4mm(W)
- Cable: 30cm

Package Included:

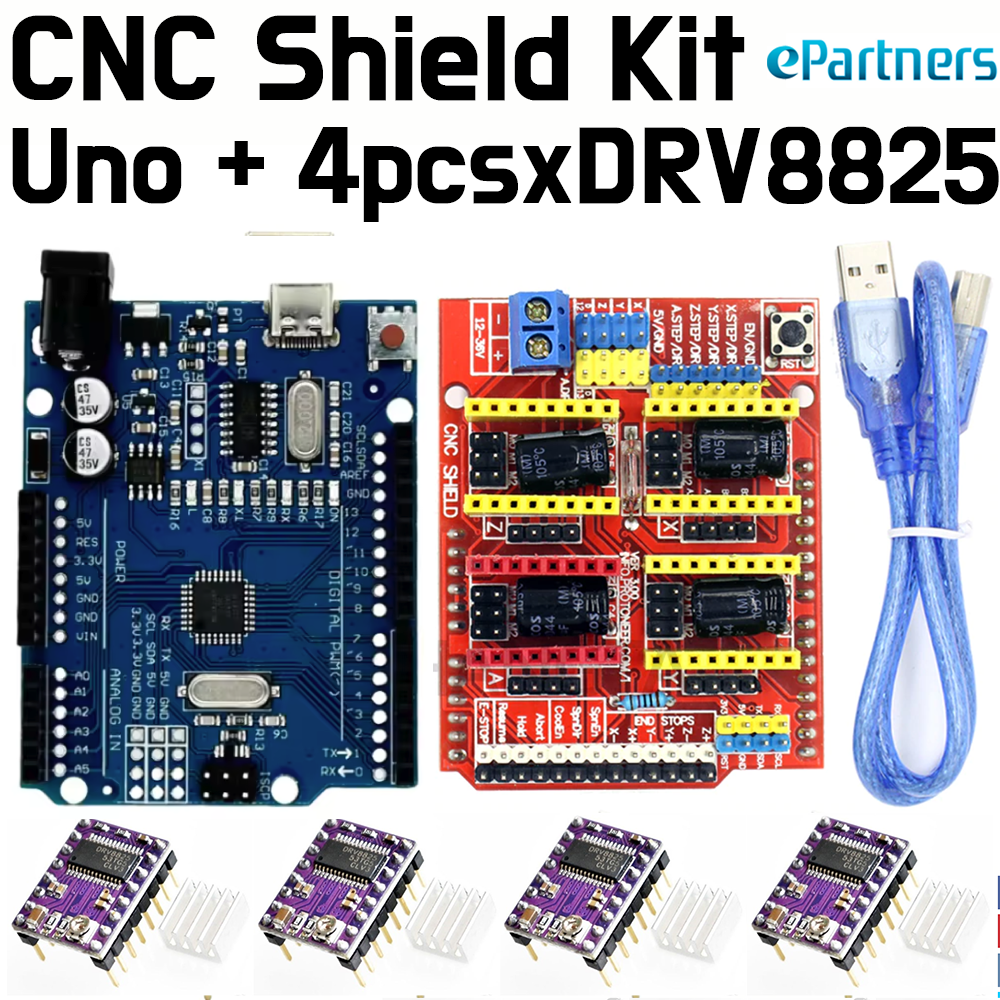

- 1pc x Arduino Uno R3
